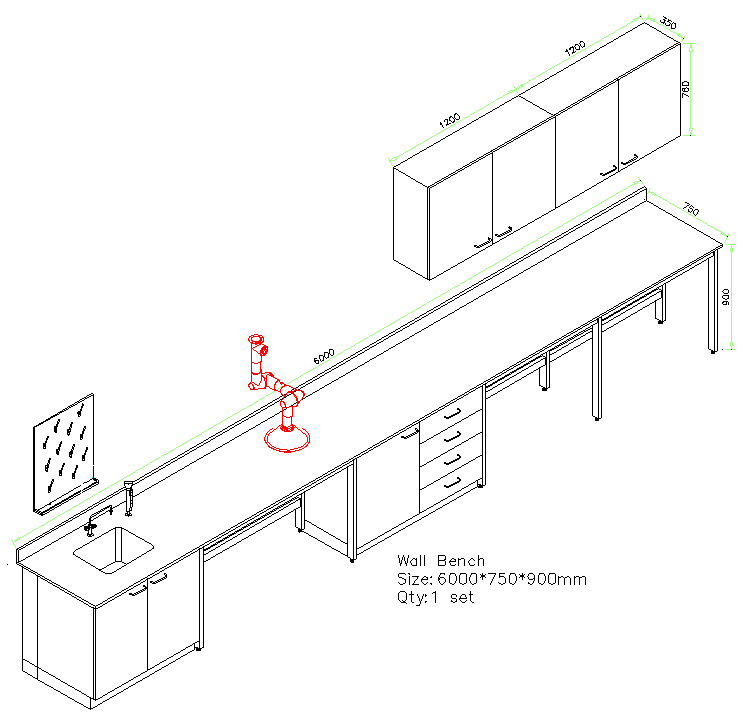

Lab bench Design with Dimensions

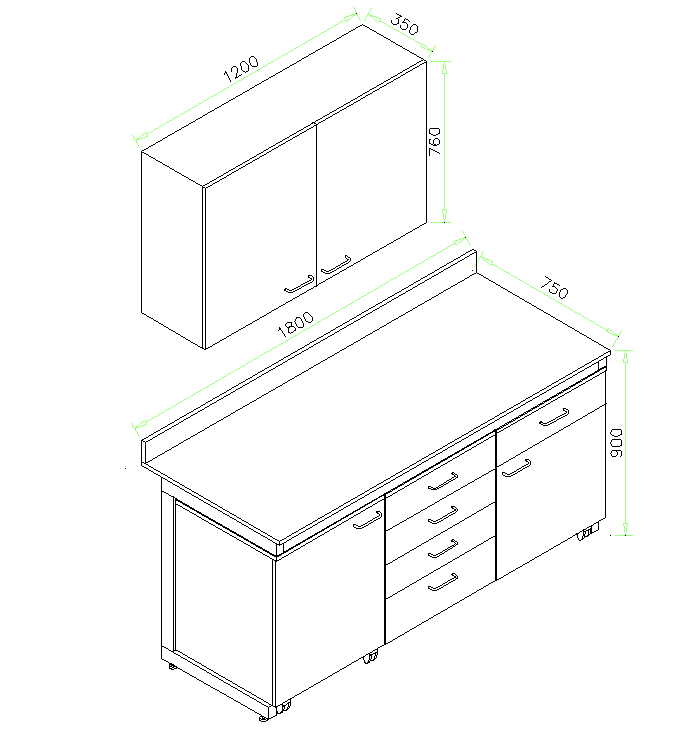

1) Side lab bench design with dimensions (Style 1)

C-frame with movable cabinet, worktop made of 19mm thick phenolic resin or 19mm epoxy resin. (Ceramic and granite countertops available)
Lenth 900mm,1200mm, 1500mm,1800mm;
Width 600mm, 750mm,900mm;
Height: 750mm,900mm.

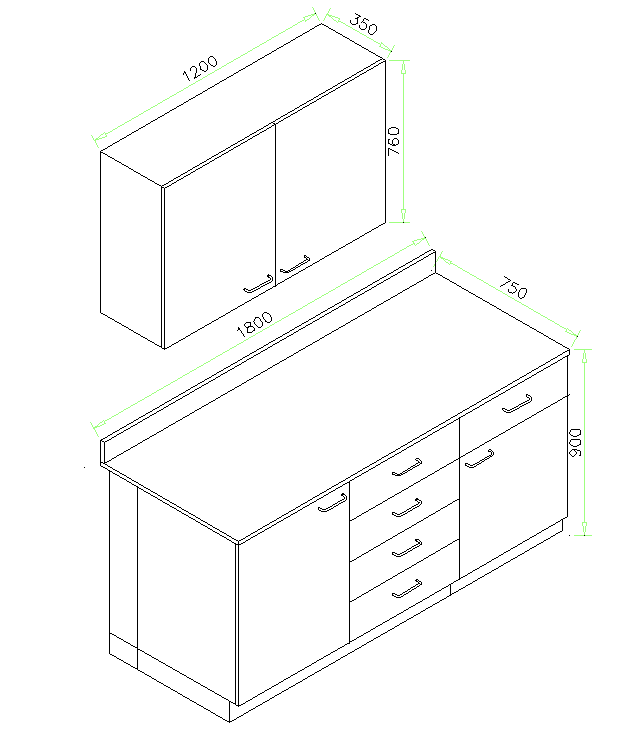

2) Side lab bench design with dimensions (Style 2)

Floor underbench cabinet with worktop, worktop made of 19mm thick phenolic resin or 19mm epoxy resin. (Ceramic and granite countertops available)
Lenth 900mm,1200mm, 1500mm,1800mm;
Width 600mm, 750mm,900mm;
Height: 750mm,900mm.


3) Side lab bench design with dimensions (Style 3)

C-frame with floor cabinet, worktop made of 19mm thick phenolic resin or 19mm epoxy resin. (Ceramic and granite countertops available)
Lenth 900mm,1200mm, 1500mm,1800mm,2400mm,3000mm,4500mm,6000mm;
Width 600mm, 750mm,900mm;
Height: 750mm,900mm.

4) Side lab bench design with dimensions (Style 4)

C-frame with floor cabinet, worktop made of 19mm thick phenolic resin or 19mm epoxy resin. (Ceramic and granite countertops available)
Lenth 900mm,1200mm, 1500mm,1800mm,2400mm,3000mm,4500mm,6000mm;
Width 600mm, 750mm,900mm;
Height: 750mm,900mm.

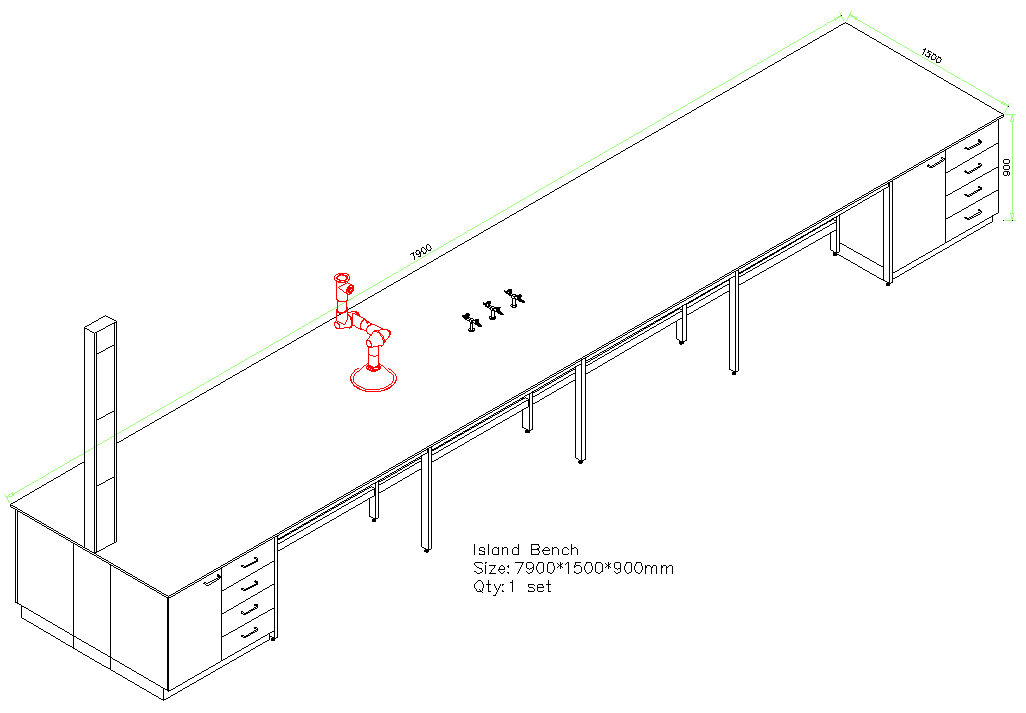

5) Center lab bench design with dimensions (Style 5)

C-frame with floor cabinet, worktop made of 19mm thick phenolic resin or 19mm epoxy resin. (Ceramic and granite countertops available)
Lenth 2400mm,3000mm,4500mm,6000mm,7500mm,9000mm;
Width 1200mm, 1350mm,1500mm,1800mm;
Height: 750mm,900mm.
