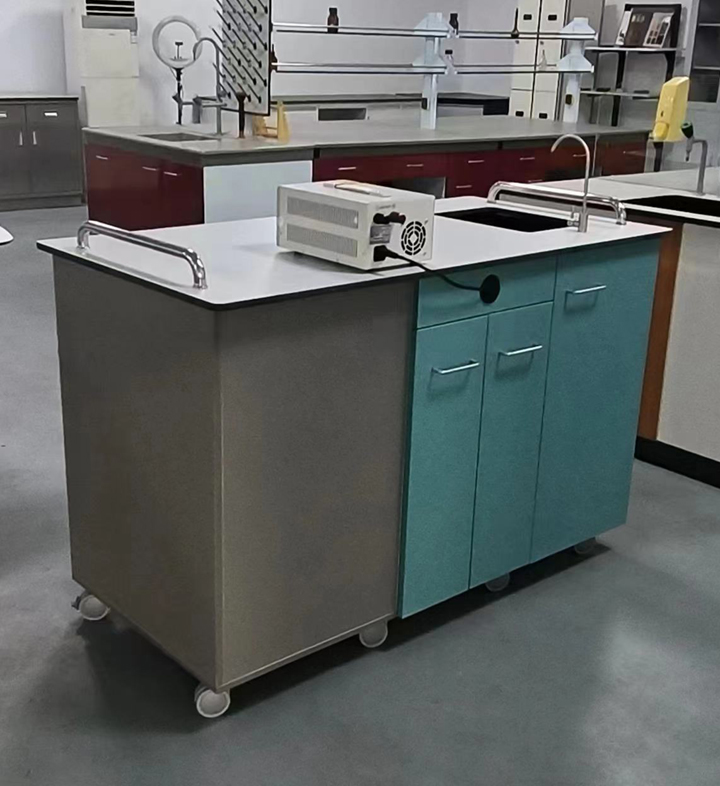

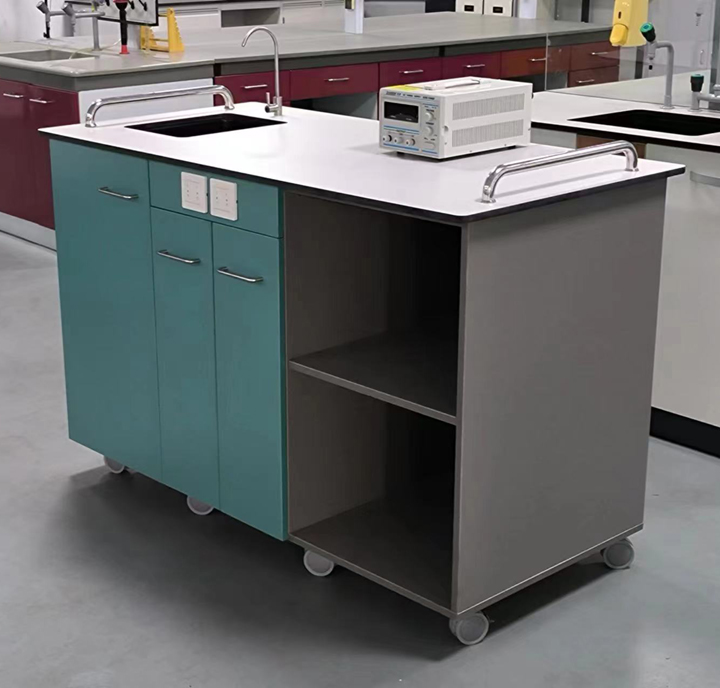

The Mobile Science Bench has been designed by science teachers for Secondary and Tertiary school science teaching and learning. It is a self-contained mobile science laboratory enabling the teaching of science in any classroom within your school or institution. The Mobile Science Bench provides an ideal flexible laboratory facility for ‘wheel in’ lectures and demonstrations and as a temporary laboratory facility when schools are undergoing redevelopment and change. The bench is designed for Secondary students providing the correct working height and the width allows easy access through standard doorways.



Features:

• Laboratory grade working surface: 16mm or 20mm Trespa Athlon

• Polypropylene trays provide ample storage space for equipment

• Lockable doors for safety

• Push/pull handles for easy manoeuvrability

• Lockable castors for stability

• Mains plug with minimum 4 socket outlet

• Single outlet gas tap & tubing for bottled gas*

• Running water via clean & waste water tanks.

• Powerful water pump and waste disposal system

• Screw in sockets for standard retort stands

Supplied with:

• Polypropylene trays

• 1 x Small drip cup sink

• 1 x 1 way gas tap with fixed tubing

• 1 x Swan neck water tap

• 5 x lockable doors with keys

• Tubing connected to gas tap (no gas regulator supplied)

• Computer screen monitor arm

• 2 x Screw in retort stand sockets

• 2 x water containers (1 x waste-Black, 1 x fresh-Clear)

• 1 x smooth constant flow fully sealed IP65 rated water pump

• Self-Priming pump up To 3m (10ft)

• Suitable For 15mm Quick Connect Plumbing

• Run dry protection + Strainer to protect from debris

• 1 x Irwin Powerswitch PSU

• 1 x Input Supply voltage 230V dc Supply frequency 50Hz

• Mains fuse Rear panel 2A, 20mm quick blow Mains plug 3A

• Output Voltage 2, 4, 6, 8, 10, 12V ac nominal 1, 3, 5, 7, 9, 11V full wave rectified dc nominal

• Maximum output current 5A AC or DC
